Research ArticleAbstract
Objective: In this present study twelve metals were analyzed in various Dokha and Shisha products. The analysis was carried out using Inductively Coupled Plasma Optical Emission Spectrometry (ICP-OES). All the metals were found in each sample and at various concentrations. Furthermore, the concentration of various heavy metals with e-cigarette is compared in the discussion.
Results: Dokha tobacco contained very high metal concentrations compared to Shisha and Marlboro brand cigarette tobaccos. The highest level of aluminum(Al) (421.235 μg/g), boron(B) (219.815 μg/g), Cobalt(Co) (25.050 μg/g), copper(Cu) (24.000 μg/g), lead(Pb) (468.620 μg/g), and zinc(Zn) (342.740 μg/g), were found in Alward Alahmar Green Dokha tobacco. Due to the significant toxicity of these metals, it is very important to control and quantify their concentrations in the tobaccos.
Keywords: Heavy Metals; Dokha, Shisha; Cigarettes; UAE
Abbreviations: ICP-OES: Inductively Coupled Plasma Optical Emission Spectrometry; Fe: Iron; Mn: Manganese; Zn: Zinc; Cu: Copper; Cd: Cadmium; Cr: Chromium; As: Arsenic; Be: Beryllium; Ni: Nickel; Al: Aluminum; B: Boron; Co: Cobalt; Pb: Lead; A.R.: Analytical Reagent; HNO3: Nitirc Acid; HCl: Hydrochloric Acid; EC: E-Cigarette; PDE: Permissible Daily Exposure
Introduction
Tobacco is available in the market legally although it is harmful
to humans [1]. During smoking, a complex mixture of compounds
is inhaled into the respiratory system affecting different organs. In
1959, some 400 compounds were known to be present in tobacco
leaves and tobacco smoke; today, the figure has risen to more than
4000 [2]. Harmful metals enter the body via food, drinking water,
and the air we breathe, or by skin contact. They could accumulate in
the liver, kidneys, bones, pancreas, and the central nervous system
where they effect the health without being noticed and diagnosed.
Heavy metals can cause cancer without ever being implicated in
the diagnosis. Heavy metals cause sodium retention leading to
high blood pressure. They can also cause heart disease and mental
retardation. Everyone is con-taminated with heavy metals, some
seriously, without ever knowing it. Nonessential heavy metal ions
cause aging in addition to serious diseases and death. People who
are otherwise very healthy will have increased aging caused by
heavy metal ions cross-linking between normal molecules in the
body.
These ions are sometimes referred to as free radicals. The
cross-linking has been identified in diseases such as hardening of
the arteries, skin ailments, carpal tunnel syndrome, degeneration
of organs, and nerve damage. When heavy metal poisoning is
suspected, it is important to begin the treatment as soon as possible
to minimize long-term damage to the patient’s nervous system and digestive tract. Heavy metal poisoning is considered a medical
emergency, and the patient should be taken to a hospital emergency
room. Heavy metals concentrations in Dokha and Shisha tobacco
products have not been extensively studied in the Middle East.
Tobacco leaves are rich sources of toxic heavy metals as metals get
preferentially enriched in the tobacco leaves during plant growth
[3,4]. The use of tobacco products always puts an impact/influence
on the health of smokers directly as well as non-smokers via passive
smoking and adds heavy metal content to the environment [5,6].
Dokha is commonly smoked out of an elongated wooden pipe called
a Midwakh (alternatively spelled ‘Medwakh’).
Hookah is a water pipe used to smoke Shisha tobacco mixture
in which charcoal heated air passes through a water-filled chamber
[7-10]. According to a World Health Organization advisory, a typical
one-hour session of hookah smoking exposes the user to 100 to
200 times the volume of smoke inhaled from a single cigarette.
Even after passing through water, tobacco smoke still contains
high levels of toxic compounds including carbon monoxide, heavy
metals, and cancer-causing chemicals (carcinogens) [11]. The
traditional Midwakh pipes have no filters so large amount of toxic
heavy metals can easily enter the lungs [12]. The content of metals
in tobacco varies a lot and it depends on several factors such as soil
type and pH genotype, use of some metal-containing pesticides,
fertilizers, etc. Some of the metals such as iron (Fe), manganese
(Mn), zinc (Zn), and copper (Cu) are important micronutrients and
they are also very important for plant growth and yield [13,14].
While soil factors have a large impact on the bioavailability of
metals to plants, different species or varieties grown on the same
soil can have different metal uptake [15].
However, other metals such as lead, cadmium, and nickel are
not important for the plant growth but they can cause serious
health and ecological problems, and several toxic metals as
carcinogens. Cadmium (Cd), chromium (Cr), arsenic (As), beryllium
(Be) and nickel (Ni) are classified as group 1 human carcinogens
[16]. In shisha, the concentration of toxic elements per portion
smoked is diluted by the molasses and glycerin. It is noted that the
most important measure regarding the toxic metals is the amount
reaching the smoker’s respiratory system from the smoke. The aim
of the present study is to determine the concentrations of twelve
metals (Al, B, Cd, Co, Cr, Cu, Fe, Mn, Ni, Pb, and Zn) in 11 various
tobaccos found in different Dokha, Shisha, and cigarette brands for
sale in the UAE. The samples were analyzed by Inductively Coupled
Plasma Optical Emission Spectrometry (ICP-OES).
Methodology
Sample Collection and Storage
Dokha and Shisha samples analyzed during this study such as “TURBO” Dhoka, “Alward Alahmar” Dhoka, “Yusuf Redha” Dokha, Shisha “Arguilla Premium Natural”, “MAZAYA” and “Al Fakher” Shisha samples were purchased from different stores. All samples were assigned an identification number and logged into a database. They were sealed in plastic bags and stored at 27 °C in their original packaging until tested.
Chemical Reagents and Preparation
Analytical Reagent (A.R.) grade chemicals and reagents used for the preparation of concentrated Hydrochloric acid (HCl) A.R (37%), concentrated Nitric acid (HNO3) A.R (65%) were purchased from Sigma-Aldrich. ICP multi-element standard solution IV, (23 elements in diluted nitric acid) 1000 mg was used to prepare the calibration standards used in determining the heavy metal concentration in the samples. To dilute the standard solution deionized water was used.
Instrument and Apparatus
Inductively Coupled Plasma ICP-OES (Varian-VISTA MPX) was used to determine the concentration of heavy metals. Ceramic pestle and mortar used for grinding and homogenizing the tobacco samples. Digital analytical balance (Scientech with model no SA210), and Whatman No. 42 filters (ash less-Germany) were used for weighing, and filtering the samples, respectively. All Glassware were soaked in 5% nitric acid for 24 h, washed with deionized water, and dried to ensure that any contamination from glassware does not occur.
Preparation of Tobacco Samples
The samples were air dried on clean watch glass and care was taken to avoid influence by dust during air drying. The dried leaves were ground using mortar and pestle and sieved with mesh sieve.
Acid Digestion of Tobacco Samples
In this present work, the solid samples were digested using
acid digestion method. Digestion with acid or acid mixtures has
long been the traditional method for the determination of metals in
plants. It is very strong acid digestion that will dissolve all elements
that could become environmentally available. About 0.2 g of ground
tobacco leaves was weighed into a clean 125 mL Erlenmeyer flask.
A 10 mL mixture of HNO3 (65%) and HCl (37%) with a ratio of 4:1
(v/v) were added and allowed to digest by heating the vessel in
a water bath-shaker for 12 h at 100 ◦C. The mixture was finally
heated strongly to a medium heat for 3 minutes and allowed to cool.
The solution was filtered using 9 cm diameter Whatman (No.
42) filter papers and transferred into 100 mL volumetric flask and
made up to the mark with deionized water. The filtrate solution
was stored in the refrigerator waiting for heavy metal analysis by
ICP-OES. Quantification was achieved by interpolating the relevant
calibration curves prepared from aqueous solutions of multielement
(Merk CertiPUR-1.11355.0100, Germany) metal standards
in the same acid concentration, to minimize matrix effects.
Analysis of Standard Reference Materials
All samples were analyzed for Al, B, Cd, Co, Cr, Cu, Fe, Mn, Ni, Pb, and Zn concentrations. Moreover, the precision, accuracy, and reproducibility of results for every run was started with a control, blank and testing several quality controls (QC) solutions.
Results
Our research provided information related to possible toxic heavy metals present in Dokha and Shisha products locally sold in UAE market. The metal concentrations in various tobacco samples are presented in Table 1 in μg/g units and plotted in Figure 1. The concentrations of each element along with range of minimum and maximum values in all samples are shown in Table 2. The range of Al, B, Cd, Co, Cr, Cu, Fe, Mn, Ni, Pb, and Zn in various Dokha and Shisha products are shown as follows:
Al (8.170 to 421.235 μg/g), B (3.2155 to 219.815 μg/g), Cd (0.964 to 58.460 μg/g), Co (0.113 to -25.050 μg/g), Cr (0.185 -58.165 μg/g), Cu (8.689-24.000 μg/g), Fe (20.730-654.700 μg/g), Mn (10.526-159.240 μg/g), Ni (2.047-59.000 μg/g), Pb (5.560- 468.620 μg/g), and Zn (0.375-342.740 μg/g).
Table 1: Concentrations of metals (μg/g tobacco) in various Dokha and Shisha brands.

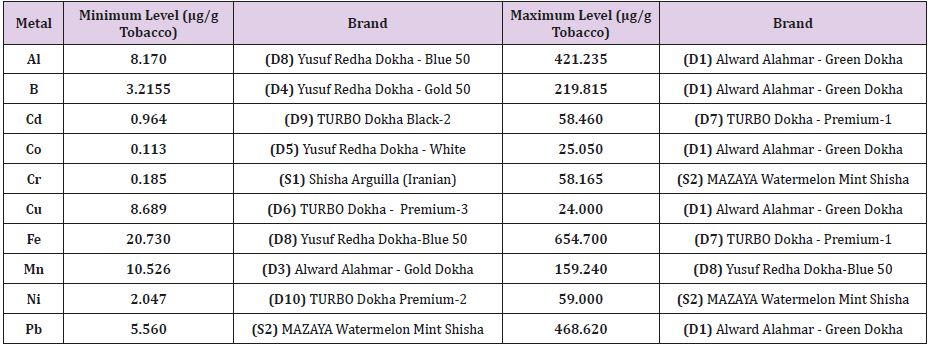

Table 2: Minimum and maximum concentrations of heavy metals (μg/g tobacco) in various Dokha and Shisha brands.

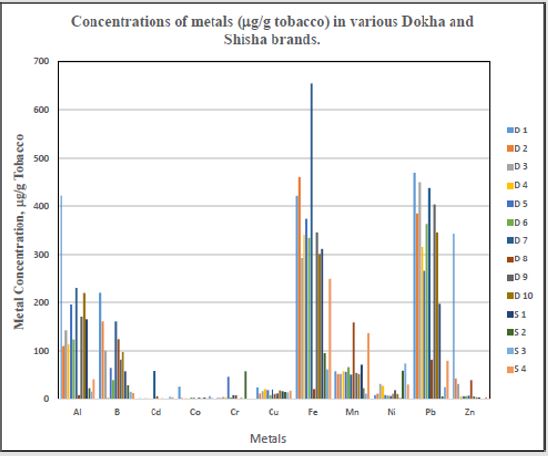

Figure 1: Concentrations of metals (μg/g tobacco) in various Dokha and Shisha brands.
Discussion
Dokha Discussion
Aluminum: The Al levels in the studied samples ranged from 8.170 μg/g to 421.235 μg/g. The highest concentration was found in the “Alward Alahmar Green Dokha” and the lowest in “Yusuf Redha Dokha-Blue 50”. In humans, Al replaces Mg2+ and Fe3+, which causes many disturbances associated with intercellular communication, cellular growth and secretory functions. The greatest complications of aluminum toxicity are neurotoxicity effects such as neuronal atrophy in the locus ceruleus, substantia nigra and striatum.
Boron: The concentration of boron varied from sample to another; and its highest concentration was found in “Alward Alahmar Green Dokha” (219.815 μg/g); while the lowest boron concentration was found in “Yusuf Redha Dokha-Gold 50” (3.2155 μg/g).
Cadmium: Cadmium (Cd) is highly toxic, and is one of the most important heavy metals, when the adverse health effects of smoking are considered. It can cause bone mineralization either through renal dysfunction or bone damage. Inhaling higher levels of cadmium can cause severe damage to the lungs [17]. The analysis showed that “TURBO Dokha Premium-1” contained very high concentration of cadmium (58.460 μg/g) compared to the rest of the studied tobaccos which ranged from 1 μg/g to 5 μg/g. This high content of cadmium classifies the “TURBO Dokha Premium-1” tobacco among other poisoning products.
Cobalt: Cobalt is an essential element but at high concentrations, it becomes toxic and mainly effects the central nervous system. In addition, cardiovascular and kidney diseases and lung fibrosis are potential effects of long-term chronic exposure to nickel [18].
Chromium: Moreover, exposure to chromium compounds can result in the formation of ulcers, which will persist for months and heal very slowly. Ulcers on the nasal septum are very common in case of chromate workers. Exposure to higher amounts of chromium compounds in humans can lead to the inhibition of erythrocyte glutathione reeducates, which in turn lowers the capacity to reduce methemoglobin to hemoglobin [19,20].
Iron: Furthermore, a very high level of iron enters the body crossing the rate-limiting absorption step hence becoming saturated. These free irons penetrate cells of the heart, liver, and brain. The free iron can also lead to lipid peroxidation, which results in severe damage to mitochondria, microsomes, and other cellular organelles [21]. In the analyzed samples the Fe concentrations ranged from 20.730 μg/g (Yusuf Redha Dokha-Blue 50) to 654.700 μg/g (TURBO Dokha Premium-1).
Lead: Toxicity of lead, also called lead poisoning, can be either acute or chronic. Acute exposure can cause loss of appetite, headache, hypertension, abdominal pain, renal dysfunction, fatigue, sleeplessness, arthritis, hallucinations, and vertigo. Chronic exposure of lead can result in mental retardation, birth defects, psychosis, autism, allergies, dyslexia, weight loss, hyperactivity, paralysis, muscular weakness, brain damage, kidney damage and may even cause death [22]. The Pb levels were high in most of the analyzed samples and the lowest levels were found in “MAZAYA Watermelon Mint Shisha” (5.560 μg/g), and “Al Fakher Double Apple Shisha” (24.155 μg/g); whereas the highest level was found in “Alward Alahmar Green Dokha” (468.620 μg/g).
From the results shown in Table 1, “Alward Alahmar Green
Dokha” had the highest content of Al, B, Co, Cu, Pb, and Zn. This
dokha product was found to be the most hazardous compared to
the other analyzed tobacco samples.
“TURBO Dokha Premium-1” was found to contain the highest
level of cadmium (58.460 μg/g), whereas the cadmium level did not
exceed 5 μg/g in all the other tobacco samples. Apart from its high
level of cadmium, “TURBO Dokha Premium-1” also contained high
levels of Al (231.575 μg/g), B (162.455 μg/g), Fe (654.700 μg/g),
and Pb (438.170 μg/g). It is worth noting that “Al Fakher Double
Apple Shisha” contained small concentrations of the heavy metals
compared to the other studied tobaccos. This was also noticed
with the Marlboro Cigarette Tobacco with the exception of its high
contents of Fe, Mn, and Pb. “Dokha” tobacco has been very much
spread among youngsters and a wide variety of this product is
available in the market. Smoking “dokha” is very damaging since
100% of the smoke is directly inhaled to the lungs and no pauses
exist between one inhale and the other as it is common with
cigarettes, cigars, and shisha smoking.
Heavy Metal and E-Cigarettes
E-cigarette (EC) has been widely considered safer than other forms of smoking [23]. However, recently the health hazards are becoming a widely questionable aspect. Propylene glycol and vegetable glycerin being toxic to cells [24] and acrolein, used to kill weeds, that causes acute lung injury, asthma, lung cancer and Chronic Obstructive Pulmonary Disease [25]. A number of published researches have studied the level of heavy metal in e-cigarettes. Farsalinos et al. published a review article and concluded that heavy metals produced from e-cigarette aerosol are considered “safe”, do not produce a significant health adverse effect and produce metals at a lesser concentration than the Permissible Daily Exposure (PDE) defined by the U.S levels from inhalational medications. However, they recommend that companies should further reduce unnecessary exposure to metals [26]. Conversely, Olmedo et al. found that e-cigarette contain CR, Ni, PB, Mn and Zn in toxic concentration to humans [27].
Conclusion
Smokers are exposed to a variety of hazardous toxic heavy
metals which are present in tobaccos and damage their health as well
as the environment. The sources of these heavy metals are closely
related to the soil, fertilizers, irrigation, manufacturing processes,
types of additives, and other factors. In this present work, twelve
metals (Al, B, Cd, Co, Cr, Cu, Fe, Mn, Ni, Pb, and Zn) were analyzed
in various Dokha and Shisha products. The metal concentrations
varied from one tobacco product to another. High levels of Fe and
Pb were found in almost all the Dokha tobacco brands. The trace
metals in the Dokha and Shisha tobaccos, are important to assure a good reference point for future studies, which will give formulations
to the popular suppliers. Awareness on the heavy metals content in
“Dokha” and other tobaccos and their related health implications
must be publicized in order to reduce the number of smokers and
to aim for a healthy society. In order to regulate the heavy metals
content of tobacco and to protect smokers from heavy metals
exposure international legislation should be passed.
In conclusion, awareness on the heavy metals content in
“Dokha” and other tobaccos and their related health implications
must be publicized in order to reduce the number of smokers and
to aim for a healthy society. In order to regulate the heavy metals
content of tobacco and to protect smokers from heavy metals
exposure international legislation should be passed.
Limitations
The main limitation of our study is the inability of measuring all the types of “Midwakh” in the market.
Declaration
Ethics Approval and Consent to Participate
No ethics approval needed since no human participants are involved.
Consent for Publication
Not applicable.
Availability of Data and Materials
The datasets used and/or analyzed during the current study are presented within the manuscript and available from the corresponding author on reasonable request.
Competing Interests
The authors declare that they have no competing interests
Funding
This work was supported by University of Sharjah grant No. (REC-16-06-02-S) granted for Dr. Bassam Mahboub as a faculty research fund. Dr. Bassam Mahboub has structured the idea, helped in literature review and went through the final article.
Authors’ Contributions
a) B.M.: Structured the idea of the research and helped in the literature review. In addition to going through the final article for publication.
b) A.N.: Has written the result and discussion section. In addition to validating the methodology.
c) A.B.: Has written the methodology section and underwent the chemical experiment.
d) O.A.: Has provided the material for research and written the introduction section. In addition to helping in the literature review.
e) H.Z.: Has provided the material, written the abstract, helped in the introduction. In addition to helping in the literature review.
f) M.E.: Has edited the discussion and reviewed the final manuscript.
All authors have read and approved the manuscript.
Acknowledgment
The authors are thankful to the College of Medicine at the University of Sharjah for funding this research project, and special thanks to the Department of Chemistry at the College of Sciences for providing the research facilities. We are grateful to Ms. Lubna Chaabi for her assistance during the ICP measurements.
References
- World Health Organization (2008) WHO report on the global tobacco epidemic. The MPOWER package. World Health Organization, Geneva, Switzerland.
- Stedman RL (1968) Chemical composition of tobacco and tobacco smoke. Chemical Reviews 68(2): 153-207.
- Schneider G, Krivan V (1993) Multi-element analysis of tobacco and smoke condensate by instrumental neutron activation analysis and atomic absorption spectrometry. International Journal of Environmental Analytical Chemistry 53(2): 87-100.
- Golia EE, Dimirkou EA, Mitsios IK (2007) Accumulation of metals on tobacco leaves (primings) grown in an agricultural area in relation to soil. Bull Environ Contam Toxicol 79(2): 158-162.
- Stephens WE, Calder A, Newton J (2005) Source and health implications of high toxic metal concentrations in illicit tobacco products. Environ Sci Technol 39(2): 479-488.
- Gala_zyn Sidorczuk M, Brzóska MM, Moniuszko Jakoniuk J (2008) Estimation of polish cigarettes contamination with cadmium and lead, and exposure to these metals via smoking. Environ Monit Assess 137(1-3): 481-493.
- Tobacco Free Initiative.
- Al Houqani M, Ali R, Hajat C (2012) Tobacco Smoking Using Midwakh Is an Emerging Health Problem Evidence from a 9. Large Cross-Sectional Survey in the United Arab Emirates. PLoS One 7(6): e39189.
- Al Shemmari N, Shaikh RB, Sreedharan J (2015) Prevalence of Dokha Use among Secondary School Students in Ajman, United Arab Emirates. Asian Pacific journal of cancer prevention: APJCP 16(2): 427-430.
- Hookah smoking. A growing threat to public health.
- World Health Organization (2015) TobReg - Advisory Note Waterpipe Tobacco Smoking: Health Effects, Research Needs and Recommended Actions by Regulators.
- Ballard JA (1992) Health effects of passive smoking. Professional Safety 37(10): 28.
- Golia EE, Mitsios IK, Tsadilas CD (2003) Concentration of heavy metals in tobacco leaves (Burley, Virginia and Oriental) in Thessaly region. Central Greece. 8th International symposium on soil and plant analysis. 13-17, Cape Town, South Africa.
- Zaprjanova P, Boshinova R (2004) Heavy Metal Content in Virginia and Burley Tobacco. Ecology and Future 3: 25-29.
- Miles LJ, Parker GR (1979) Heavy metal interaction for Andropogon scoparius and Rudbeckia hirta grown on soil from urban and rural sites with heavy metal additions. J Environ Qual 8(4): 443-449.
- IARC (2006) Overall evaluations of carcinogenicity to humans (As evaluated in IARC Monographs Volumes 1-95, last updated 13 December 2006), International Agency for Research on Cancer, Lyon.
- Bernard A (2008) Cadmium & its adverse effects on human health. Indian J Med Res 128(4): 557-64.
- Kazi TG, Jalbani N, Arain MB, Jamali MK, Afridi HI, et al. (2009) Toxic metals distribution in different components of Pakistanian imported cigarettes by electrothermal atomic absorption spectrometer. J Hazard Mater 163(1): 302-307.
- Koutras GA, Schneider AS, Hattori M, Valentine WN (1965) Studies on chromated erythrocytes. Mechanisms of chromate inhibition of glutathione reductase. Br J Haematol 11(3): 360-369.
- Schlatter C, Kissling U (1973) Acute fatal bichromate poisoning. Beitrage zur Gerichtlichen Medizin 30: 382-388.
- Albretsen J (2006) The toxicity of iron, an essential element. Veterinary medicine 101(2): 82-90.
- Martin S, Griswold W (2009) Human health effects of heavy metals. Environmental Science and Technology Briefs for Citizens 15: 1-6.
- Farsalinos KE, Polosa R (2014) Safety evaluation and risk assessment of electronic cigarettes as tobacco cigarette substitutes: A systematic review. Ther Adv Drug Saf 5(2): 67-86.
- Sassano MF, Davis ES, Keating JE, Zorn BT, Kochar TK, et al. (2018) Evaluation of e-liquid toxicity using an open-source high-throughput screening assay. PLoS Biol 16(3): e2003904.
- Bein K, Leikauf GD (2011) Acrolein - A pulmonary hazard. Mol Nutr Food Res 55(9): 1342-1360.
- Farsalinos KE, Voudris V, Poulas K. (2015) Are Metals Emitted from Electronic Cigarettes a Reason for Health Concern? A Risk-Assessment Analysis of Currently Available Literature. Int J Environ Res Public Health 12(5): 5215-5232.
- Olmedo P, Goessler W, Tanda S, Grau Perez M, Jarmul S, et al. (2018) Metal Concentrations in e-Cigarette Liquid and Aerosol Samples: The Contribution of Metallic Coils. Environmental Health Perspectives. 126(2): 027010.
