Abstract

Hydroxyapatite (HAP-- Ca 10(PO4)6 (OH)2) is a biocompatible and bioactive material that is widely used for biomedical applications, especially in bone replacements. It has good load carrying capacity; however, it lacks antibacterial property. New bio-composites based on bovine hydroxyapatite doped with, magnetite iron oxide (HAP/ Fe₃O₄) matrix reinforced with ZnO and MgO nanoparticles are proposed for biomedical applications that provide improved antibacterial activity with potential to be used in magnetic therapy. Microwave sintering was used to manufacture the composites. The microstructure evolution in these composites were studied by Scanning Electron Microscopy (SEM) and Energy Dispersive Spectroscopy (EDS). Density, microhardness, compressive strength of the composites was measured and compared along with their magnetic properties. Finite element analysis simulations were performed for the compression tests.

Keywords: Natural Hydroxyapatite; Magnetic Fe₃O₄; Biocompatibility; SEM & EDS analyses; Bio composites; ZnO & MgO additions

Introduction

Recently, many advances in the synthesis and surface engineering of iron oxide nanoparticles have been made [1]. Moreover, there are still newly formed magnetic nanoparticles proposed (bio glass ceramics [2, 3-10] and hydroxyapatite [4,5]. Hydroxyapatite (HAP), being the main mineral phase of natural bone, is a commonly studied material for biomedical applications [6-8]. It is commonly used in bone grafting and tissue engineering applications due to its excellent biocompatibility and osteon-conductivity [9]. HAP, Ca₁₀(PO₄)₆(OH)₂, has a hexagonal crystal lattice structure [10-28], which allows for a wide variety of substitutions by anions, cations, and functional groups, such as the F- [11], Fe^2+/3+ [4, 12-16], and CO₃²⁻ [17]. Iron is of interest as a cation that can be substituted in HAP due to the fact it is naturally present in trace amounts in both teeth and bone [13]. Furthermore, its presence provides iron substituted apatite (FeHA) with possible magnetic properties that can potentially be applied to various applications, including drug delivery, medical imaging, or hyperthermia-based cancer therapies, for which pure HAP is unsuitable [1,14,18-22]. Magnetic therapy has been considered as a promising treatment alternative in health care, especially in the treatment of bone diseases. Research has indicated that magnetic fields may stimulate the proliferation and differentiation of osteoblasts, promote the expression of growth factors such as bone morphogenetic protein, increase osteonintegration, and accelerate new bone formation [23-26]. Magnetic fields were also found to be beneficial in promoting the integration of bone and implants, increasing bone density and calcium content, and accelerating the healing of bone fractures [27-30]. Among the magnetic materials usually used in the biomedical field, magnetic nanoparticles (MNPs) have drawn great interest owing to their unique magnetic properties, including the fact that they become superparamagnetic at diameters of < 20 nm [31]. Although the role of iron in bone accrual has received little attention, a few studies have previously shown that iron restriction can have an inhibitory effect on the mineralization of osteoblasts in vitro and experimental evidence also suggests that there may be some positive association between iron metabolism and the in vitro proliferation of bone or non-bone cell lines [32-37]. Additionally, the implant associated infection is widely considered as a major concern in the field of biomedical applications and this has been the driving force for developing HAP-based biomaterials with antibacterial additives for possible use in prosthetic devices. In our present work, we sintered Hydroxyapatite (HAP) with different concentrations of zinc oxide micro rods (ZnO) at 1250°C to produce HAP-ZnO bio composites. In vitro antimicrobial studies were carried out to understand how ZnO addition (up to 30 wt %) to HAP leads to the improvement in bacteria static/bactericidal property and thereby reduce bacterial infection on implant surface. Some of the biomedical based research have shown that addition of ZnO also had a modest influence on fracture toughness and hardness as well as improving the antimicrobial property.

A maximum up to 1.7 MPam1/2 indentation fracture toughness and hardness of up to 6.8 GPa were measured in HAPZnO bio composites [38-51]. Other researches have also shown that the additions of reinforcing elements like ZnO and MgO in HAP/magnetic iron oxide composites could reduce the bacterial infections on the surface of the composites and increase their hardness which is a positive feature for different medical implants [2,10,11]. For this reason, the current work aims to present the design of new bio-composites based on bovine hydroxyapatite (BHA)/nano-magnetite iron oxide (Fe3O4) reinforced with ZnO and MgO nanoparticles. Here, in the frame of the “Bio ceramic” research project, a net shape microwave sintering procedure was used by using a few percent of paraffin to create a natural micro porous structure as an alternative to the other materials to create a porous structure. A special attention was given for the microstructural evolution with recently developed compositions to give practical significance for the application as biomaterials. Mechanical and other physical-chemical characteristics were studied in detail. The structure evolutions of these composites were observed in detail by means of Scanning Electron Microscopy (SEM) and Energy Dispersive Spectroscopy (EDS).

Experimental Conditions

HAP-Materials Processing and Microwave - Sintering

Natural HAP was obtained from calcinated fresh - young bovine bones (femurs) by following the method developed at SUPMECA/ LISMMA-Paris [2,10]. The femurs were undergone deproteinization with NaOH treatment. After repeated washing, they were heat treated at 850°C. The treated HAP powder (particle sizes of 1-2μm) was the mixed with other constituents as described in Sec 2.2. In this work, microwave sintering process has been carried out for the manufacturing of the bio-composite materials details of which were given in earlier papers [2,10,11]. The application of microwave energy to the processing of various materials such as ceramics, metals and composites offers several advantages over conventional heating methods. Microwave heating results in lower energy costs and decreased processing times for many industrial processes. These advantages include unique microstructure and properties, improved product yield, energy savings, reduction in manufacturing cost and synthesis of new materials.

In order to compare the microstructural evolution of microwave sintered composites to the ones manufactured by conventional sintering, some specimens were sintered in an electrical - conventional furnace (High Temperature Furnace. In this project, the primary aim, however, is to use a house type microwave oven under laboratory conditions. For this reason, a house type (2.45 GHz) microwave oven was modified to be used in the manufacturing process. A special thermocouple, insulated for the microwaves, was installed to monitor the temperature during production. The accuracy of temperature measurement with this device was determined to be within -10°C of the temperature measured. The thermocouples were placed inside the alumina ceramic crucible, 2-3 mm away from the specimens. Compared to the conventional sintering, there was a slight increase in density of the specimens manufactured with microwave sintering. Since the microwave sintering took much shorter time, densification rate in the microwave sintering process may be considered to be higher than in the conventional sintering. Effective sintering time for these samples was chosen as 30 minutes.

Specimen Design and Other Experimental Design

The compact geometry was prepared based on the matrix natural HAP + 20wt% magnetic iron oxide (Fe3O4) reinforced with different percentages of nano MgO and ZnO (received from VWR-France). At the beginning of the process, a pre-treatment of doping of iron oxide was made with the reinforcements for surface activation and for increasing of homogeneous distribution of the reinforcements in the matrix. For this treatment, a very simple process has been carried out: pre-mixing and pre-heating of the magnetic iron oxide (Fe₃O₄) with the reinforcement at 100-150°C followed by surface activation with hydrogen peroxide during the mixture at this temperature. Then, the blended powders were homogenized by ball milling for two hours, then compacted by uniaxial cold isostatic pressing at a pressure of 300 MPa, intending to produce an initial green density ranging 85-90%. Cylindrical test specimens were prepared (Height=11mm, Diameter=11mm) according to the British Standards-BS 7253, In the second stage, micro hardness and quasi static compression tests were performed on the sintered samples to study the influence of microstructure and phase composition on the micro-mechanical behavior of the manufactured composites. For microstructural surface analysis acetic and lactic acids were used to etch the surfaces. Microstructure was evaluated by SEM and chemical analysis by “EDS” analysis. Fracture surfaces of the specimens after the compression tests were also evaluated by SEM. Magnetic measurements were carried out by the physical-chemistry research laboratory in Paris. Two test specimens were used for each composite determine the magnetic saturation values. The results for the different composites were compared to each other. Experimental results were used to create a simple Finite Element (FEM) analysis model to study the behavior of the bio ceramic materials during deformation.

Results and Discussions

Microstructural Evaluation

General compositions of the HAP based bio composites are given in the Table 1. In the frame of the common research project, only three composites were presented here. Basically, HAP was doped with pure magnetic Fe₃O₄ after those secondary reinforcements were added as explained in the former section. HAP has a hexagonal structure with lattice parameters a = 0.942 nm and c = 0.687 nm. The ideal formula of HAP is given as Ca₁₀(PO₄)₆(OH)₂. The atomic structure of HAP and its projection along the “c” axis are shown in Figure 1. Also, Figure 1c shows the average grain size measured of this mixture which varies from 1 to 5μm. This structure verifies that the microwave sintering is a viable manufacturing method with lower energy costs and shorter processing times for these materials. Figure 2 shows the microstructures of natural HAP + 20% magnetic iron oxide (Fe₃O₄) reinforced with different percentages of nano ZnO (10%) and MgO (10%) taken from the SEM image with “EDS” analysis that was distributed homogeneously in the structure for three compositions prepared here.

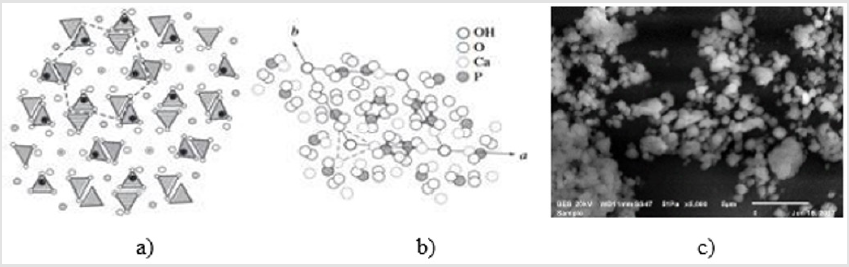

Figure 1:

a) Atomic structure of HAP,

b) Its projection along the c axis [38, 39] and HAP powders after 2 hours of milling used in this work

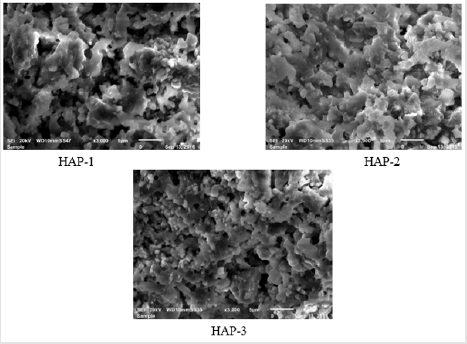

Figure 2: Microstructures of three composites obtained after sintering (1200°C, 2 hours), for HAP-1, HAP-2 and HAP-3, respectively.

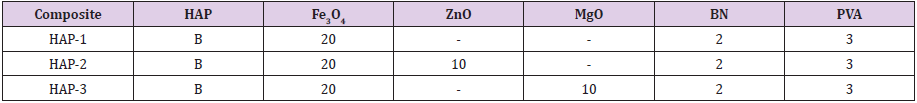

Table 1: Weight percentage of the particles added as reinforcement to the HAP-matrix.

Mechanical – Physical Behavior; Density, Microhardness and Compression Tests

A main idea in the improvement of the mechanical and physical properties of the implant materials is their mechanical strength. Bio ceramics should have strength similar to bone tissue that also exhibit a good fatigue and fracture toughness under both static and dynamic forces. In the literature, the modulus of elasticity of the bone varies from 0.005 to 0.5 GPa, depending on its position and its age [38-42]. Simultaneously, the elastic modulus of certain ceramics for medical applications is around 380 GPa. Again, it is known that the resultant stress gradient may be the origin of the fracture along the bone implant interface [38]. Finally, it is not good idea to use very hard implant materials that can increase the rate of bone wear. In the frame of this present work, all the density measurements of the specimens were carried out by using Archimedes method. These values varied between 1.79 ± 0.15 g/cm³ for HAP-1 and 2.05 ± 0.25 g/cm³ for HAP-2 and 2.19 ± 0.30 g/cm³ for HAP-3 respectively. Again, microhardness tests results measured on the 3 specimens for each composite were found as 95 ± 0,25 HVN for HAP-1 and 225 ± 0,12 HVN for HAP-2 and finally 321 ± 0,18 HVN for HAP-3 respectively. Quasi-static compression test was performed on 4-5 specimens for each composition with a servo-hydraulic MTS Universal test system (model: 5500R) at an initial rate of 10 mm/ min and second rate of 5 mm/min. Maximum load endpoint was 5000N. Quasi-static compression test results have been shown in the Figure 3. As shown in the Figure 3, the third series (HAP- 3) have shown a little bit higher strength but is more ductile then the two others (HAP-1 and HAP-2). Fracture surfaces of these three composites are shown in Figure 4. All of these pictures justify that microwave sintering give a good solution. A good cohesion in each structure is observed on the broken specimens. Influence of MgO on the fracture behavior is considerable which was also given in the literature [2,10,38,39,43];

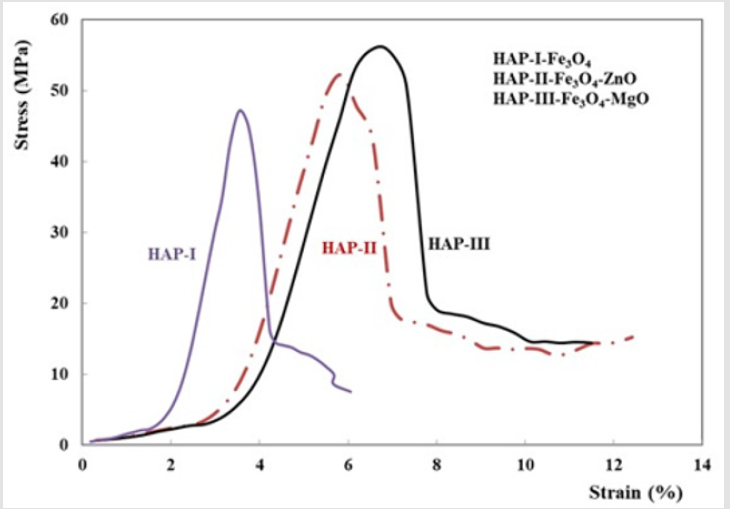

Figure 3: Static compression test results for three composites developed in this work, HAP-1, HAP-2 and HAP-3 respectively.

Figure 4: Fracture surfaces after the compression test for three composites, HAP-1, HAP-2 and HAP-3 respectively.

Evaluation of magnetic properties for HAP-1, HAP-2 and HAP-3

Magnetic measurements have been carried out by the physicalchemistry research laboratory in Paris. Two test specimens were used for each composite and evaluated for finding the magnetic saturation values (Figure 5) and compared certain parameters and summarized in the Table 2. As well known, magnetic properties of the composite structures can be improved with small grain size distribution well in the matrix especially in the nanoscale [2,10,17,21,23,42-55]. As indicated in the former papers [2,10,11,17,21,23,38,39,42-55], a basic and important parameter in the characterization of the magnetic materials is the power loss; this kind of power gives a measure of the energy density available in the material for a specific application. Magnetic measurements of the Fe₃O₄/HAP based composites have shown very similar quasi superparamagnetic behavior; they give magnetic saturation between 7.87 and 8.66 emu/g. As known well that the magnetic coercivity (coercivity force) measures the ability of a ferromagnetic material to withstand an external magnetic field without becoming demagnetized. This value measured for three composites here is variable between 0, 05 to 0.07 kA/m (Oe). For this reason, these values measured here is very efficient for biomedical applications of these composites. It seems that all of the three composites very similar value of Ms to be maximized as much as possible to confirm a better response under the application of the pieces. These results should be considered as the indicative values for three composites and other measurements for these composites are going on in the frame of the research project.

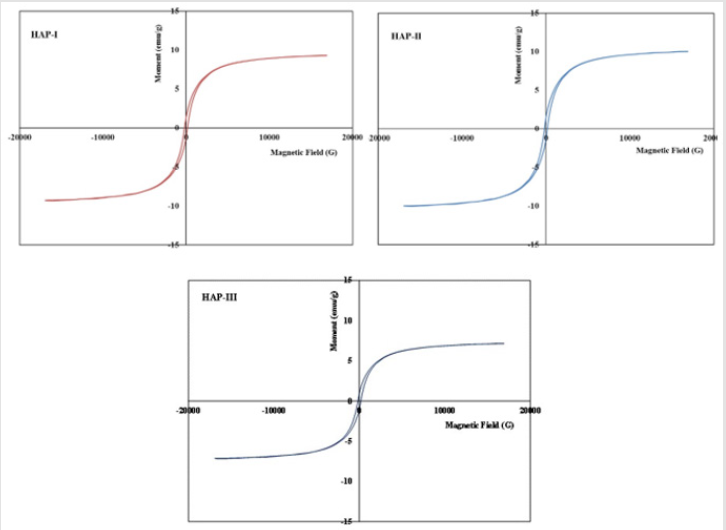

Figure 5: Magnetic properties; magnetic saturation curve for the composite of HAP-I-II and III.

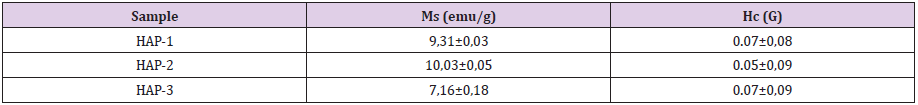

Table 2: Hysteresis parameters of the HAP based bio composites.

Finite Element Simulation of the Microstructure of HAP Based Composites

The idealized microstructure considered in this work consists of a random arrangement of cylindrical inclusions embedded in a continuous HAP bio composite matrix (HAP+Fe₃O₄). The volume fraction of the reinforcements is varied from 5%, 10% to 20% and the micro-macro transition schemes are evaluated in many cases. However, when the volume fraction increases, nearby the reinforcements start to interact and this can influence the overall mechanical behavior. The distributions of the reinforcements in the matrix were considered randomly and as equal shape and they were aligned in similar way. The Representative Volume Element (RVE) microstructure is periodic along the 3 directions, permitting us to put on periodic boundary conditions to the external faces of the specimens. The positioning of the reinforcements is controlled by the practical limitation of producing a suitable FE mesh. A simple condition is useful to the minimal distance between each inclusion surface and the external faces of the specimen. The volume of one particular cell for the reinforcements is less than 1mm³.

In the same way, the representative cells are also meshed with quadratic tetrahedral. FE simulations are achieved using ABAQUS (2008-Supmeca-Paris) and the whole volume is meshed using 4-node C3D4 tetrahedral in ABAQUS), allowing us to improved detention the strain gradients in the matrix. After that, the prediction was efficiently compared to those obtained with finer meshes. It means that comparison of active response is made to the regular response of the reinforcement. Figure 6 indicates typical meshes formation generated for a composite with various percentages of the reinforcements and variable geometry of specimens that were used in this work. Evidently, the macroscopic stress predicted by the FE analysis is computed from an average volume of the stress tensor given at each integration point over the RVE of domain “i”. The same method was applied as have been done in the former papers of the authors [2,10]: As for the procedure of numerical part, it is intended to calculate the macroscopic stresses and strains using a homogenization procedure of the numerical part. This procedure simply consists on defining the deformation state at each integration point, in the FE model, as well as the present matrix average state that depends on the corresponding state at the previous step time, etc. As known, a simple FE analysis proposed here affords an alternative approach for approximating of the material properties.

Figure 6: Schematic of experimental setup and position of the composite in FEM (HAP+Fe₃O₄ additionally reinforced with MgO and ZnO).

A simple FE model is proposed here for the heterogeneous trial in which the material parameters are considered as variable. The simulation is then accomplished, and results can be compared to data obtained from comparable experimental results. The agreement between the model predictions and the data is quantified and judged to be adequate or not. If the settlement is not satisfactory, the parameter values can be updated after that a new FE model can be produced and run. At the final stage, the process carries on until obtaining satisfactory results. This simple method constructed here can give understandable and comparable predictions regarding to the experimental results. Additionally, boundary conditions considered here for the material properties should be arranged: it means that a simple boundary condition is U_x, U_y, U_z = 0 at the bottom border and also, a negative displacement load Uy in y-direction was imposed at the upper face of the specimen to make through the rigid plate indenter (see Figure 5 for experimental setup and the position of the HAP and reinforcement in the FEM for these composites). A static step with small step time is used to assess the gradual evolution of stresses and strains in the basics model; here, the corresponding reaction force is calculated and used to supply the maximum load.

Certain mechanical properties of the composites designed in the present work are then predicted from the reinforcement properties. Hydroxyapatite (HAP) bio composite ceramics reinforced basically with magnetic iron oxide (Fe₃O₄), and secondly added reinforcements are pure pulverized MgO and ZnO powders respectively. The reinforcement materials are assumed to be linearly elastic with elastic modulus. Ep =359 GPa with a density of ρ = 5.12 g/cm³ and poison’s ratio υ=0.12 for fine magnetic iron oxide (Fe₃O₄) as a main part of the matrix. Again, Ep =330 GPa with a density of ρ = 3.56 g/cm³ and poison’s ratio υ=0.35 for pure MgO and Ep =120 GPa with a density of ρ = 5.6 g/cm³ and poison’s ratio υ=0.34 for pure ZnO. As a basic data considered for the model designed in the present work. The FE solution used to simulate multiple-phase composites consisting of an elastic-plastic matrix reinforced by linear elastic inclusions. Uniaxial compressive loading is successively applied to the multi particle cells embedded in the HAP matrix. The average of the macroscopic strain over a RVE computed at each time step provides the loading history for the corresponding FE models.

Average equivalent stress in the inclusions of multiplephase composite materials is determined for different volume fractions of the reinforcing phase. With multiple reinforcements, FE predictions (FE with 25-30% volume fraction) correspond to a uniaxial compression test. The predictions of the compressive results were compared with experimental compression test results by using of deformation and maximum stress values (Table 3). The average volume fractions for the reinforcements were indicated in the same table. For the sake of simplicity, only compressive test results were considered by using a rigid plate. As for these comparisons, numerical values were found higher than those of experimental. Naturally, experimental conditions in laboratory scale are influenced with many artificial reasons occurred during the test. Position, porosity, geometry of the specimen and other environmental conditions can influence these results whereas numerical results obtained by a simple FE model here give the results considered for ideal perfect specimens. It should be more precious experimental work. These results give a practical solution and give idea for industrial applications of these biomaterials. For this reason, these results should be accepted as indicative results as a helpful tool for manufacturing of new design of bio composites.

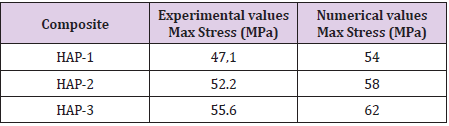

Table 3: Comparison of maximum experimental and numerical stress values (MPa) for three different compositions.

Conclusion

basic idea in this work is centralized in the improvement of the mechanical and physical properties of the bio composites used as implant materials. For this reason, new designs of HAP based bio composites were developed by using a microwave sintering. As is well known, the addition of reinforcing elements such as ZnO and MgO in HAP/magnetic iron oxide composites could reduce the bacterial infections on the surface of the composites and increase their hardness and strength which is a positive feature for different medical implants. In the present work, the results obtained with the ZnO and MgO reinforcements should be considered as indicative values and can help for the manufacturing of these types of bio composites. As for FEM solution, the reaction of the reinforcements (considered as inclusions here) in the HAP matrix can be predicted based on the solution of the reinforcement in a finite medium having the properties of the matrix. Here only a simple FEM allowing heterogeneous field was proposed to solve an equivalent inclusion problem. Macroscopic deformation histories corresponding to the non-monotonic uniaxial and the plane strain compression were consecutively considered. Here, a simple prediction has made by using a simple FEM Naturally, development of HAP bio composites needs more investigations to attempt a high accuracy between experimental results and their equivalent FE predictions.

Acknowledgment

The authors acknowledge for the financial support for this research given by Supmeca/Paris-FR and UNICAMP/FEMCampinas/ SP-BR.
